Precision Optical Lenses and Assemblies
- Optical Imaging
- Optical Display
- Optical Sensing

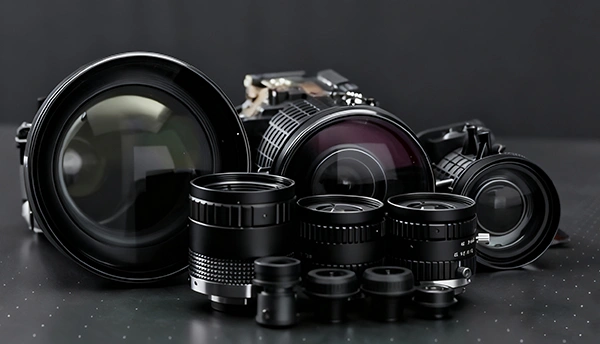

Union Optech operates 61 production lines, employs over 2,500 skilled professionals. Our monthly capacity reaches 10 million fixed-focus lenses and 2 million zoom lenses. With advanced manufacturing systems and stringent quality control, we deliver consistent, high-performance precision optical lenses and assemblies to customers worldwide.
Security Camera Lens
Video Conference Lens
Projector Lens
Camera Lens & Video Lens
Infrared Thermal Imaging Lens
| Part Number | Sensor Type | Focal Length | FNo. | Total Length | Mechanical BFL | Max Image Circle | Optical FOV(D) | Optical FOV(H) | Optical FOV (V) | Relative Illumination | TV Distortion | MAX Chief Ray Angle |
| UN0390 | 1/2.7” | 3.12mm±5% | 1.6±5% | 22.27±0.3mm (in air) | 5.31±0.2mm (in air) | Ø7mm | 132.8°±3°(φ6.609mm) | 110.3°±3°(φ5.76mm) | 59.6°±3° (φ3.24mm) | 40%±5% | ≥-18.1% | 13.4°±3° |
| UN0500 | 1/1.8' | 4.32±5% | 1.08±10% | 29.8±0.3mm | 4±0.2mm | Ø9.2mm | 134.7°±3° (Ø8.955mm) | 111.8°±3° (Ø7.792mm) | 59.65°±3° (Ø4.408mm) | ≥40% | ≥-18% | 12.5°±3° |
| UN0516 | 1/2.8' | 3.5±5%mm | 1.1±10% | 22.5±0.3mm | 4±0.2mm | Ø7.2mm | 115°±3° (φ6.388mm) | 97°±3°(φ5.568mm) | 52°±3°(φ3.132mm) | ≥43% | ≥-16% | 13°±3° |
| UN0376 | 1/2.7' | 3.84mm±5% | 1.6±5% | 22.5±0.3mm | 6±0.2mm | Ø7mm | 110.0°±6° (φ6.609mm) | 92.5°±3°(φ5.76mm) | 49.3°±3° (φ3.24mm) | 44%±5% (φ6.609mm) | >-14.7% (φ6.609mm) | 13.4°±3° |
| UN0510 | 1/2.7' | 3.98mm±5% | 1.6±5% | 19.1±0.3mm | 5.7±0.2mm | Ø6.9mm | 111.2°±6°(φ6.609mm) | 93.7°±5°(φ5.76mm) | 48.5°±3° (φ3.24mm) | ≥38% | ≥-16% | 14.1°±3° |
| UN0551 | 1/2.8' | 2.41mm±5% | 2.0±5% | 24.98±0.3mm | 5.0±0.2mm | Ø6.8mm | 160.1°±6° (φ6.48mm) | 126.2°±5° (φ5.18mm) | 93.9°±3° (φ3.888mm) | ≥70% | ≥-16.8% | 10.54°±3° |
| UN0391 | 1/2.7' | 3.99mm±5% | 2.2±5% | 22.5±0.3mm | 5.25±0.2mm | Ø6.9mm | 105°±3° (φ6.609mm) | 87.6°±3° (φ5.76mm) | 47.0°±3° (φ3.24mm) | ≥40% | ≥-15% | 15.3°±3° |
| UN0399 | 1/2.7' | 3.05mm±5% | 2.2±5% | 22.55±0.3mm | 4.95±0.2mm | Ø6.8mm | 133.1°±5° | 107.7°±5° | 57.9°±5° | 36%±5% | ≥-17% | 14.9°±3° |
| Part Number | Sensor Type | Focal Length | FNo. | Total Length | Mechanical BFL | Max Image Circle | Optical FOV(D) | Optical FOV(H) | Optical FOV(V) | Relative Illumination | TV Distortion | MAX Chief Ray Angle |
| UN0531 | 1” | 6.86mm±5% | 2.8±5% | 52.13±0.3 mm(at inf) | 4.72±0.2 mm (at inf) | ø15.88mm | 127.6°±3° (φ15.14mm) | 111.1°±3° (φ13.2mm) | 61.9°±3° (φ7.4mm) | 67%±5% | 11.1°±3° | |
| UN5017 | 1/2.8' | 2.03mm±5% | 2.2±5% | 22.49±0.3 (IR+CG=0.71mm) | 3.0+±0.2 (IR+CG=0.71mm) | ø6.8mm | 117.2°±3° (ø=6.388mm) | 110°± (ø=5.568mm) | 74.6±3° (ø=3.132mm) | 40%±5% (ø=6.388mm) | ≥-2.5% | 12±3° |
| UN5018 | 1/2.7' | 3.0mm±5% | 2.0±5% | 14.48±0.3mm | 3.73±0.2mm | ø7.0mm | 97.5°±3° (ø6.608mm) | 88.1°±3° (φ5.76mm) | 56°±3° (φ3.24mm) | ≥35% | ≥-2.5% | 19.5° |
| UN5030 | 1/1.8' | 4.2mm±5% | 2.3±5% | 27±0.3 mm(IR+CG:0.51) | 2.9±0.2mm (IR+CG:0.51) | ø8.4mm | 87°±3°(φ8.0mm) | 73.1°±3°(φ6.4mm) | 58°±3° (φ4.8mm) | ≥45% | -2%<X<0% | 14°±3° |
| Part Number | Projection Technology | Light Source | Panel | Throw Ratio | Resolution | F No. | TTL | ANSI Lm |
| P0056 | DLP | RGB Laser | 0.47" | 0.218 | 4K | 3.15 | 164.12mm | 1200lm |
| P0087 | LCOS-DLP Compatible | Laser (Phosphor) | 0.33"&0.37" | 0.23/0.21 | 1080P | 2.4 | 169mm | 1200lm |
| P0091 | DLP | RGB Laser | 0.47" | 0.21 | 4K | 3.1 | 159.62mm | 2530lm |
| P0110 | DLP | Laser (Phosphor) | 0.8" | 1.5-2.4 | WUXGA | 2.0-2.4 | / | / |
| P0117 | DLP | RGB Laser | 0.47"SST | 0.18 | 4K | 2.2 | / | / |
| P0051 | LCOS-DLP Compatible | RGB Laser | 0.33"&0.37" | 1.2 | 1080P | 2.4 | 80.65mm | 600lm |
| P0102 | DLP | Laser (Phosphor) | 0.23" | 0.23 | 1080P | 2.6 | 84.5mm | 300lm |
| Part Number | Light Source | Chip | Throw Ratio | Resolution | Brightness | Party Number | |
| P23B (Direct Throw) | RGB Laser | DLP | .23DMD | 1.2 | 1080P | 640lm | P0097 |
| P33E (Direct Throw) | RGB Laser | DLP | .33DMD | 1.2 | 1080P | 1200lm | P0099 |
| Part No. | EFL | Zoom Ratio | F no. | TTL | Image format | Resolution | Other |
| T5194 | 12-84mm | 7x | 1.5-2.6 | 110mm | 4/3 inch | 4K | / |
| UN5701 | 9.79-186.5mm | 19x | 2.8-4.5 | / | 1-inch | 4K | OIS |
| T5176 | 9.9-217mm | 22x | 1.6-5.4 | 139mm | 1/1.2 inch | 4K | / |
| T5719 | 7.1–171.95mm | 24x | 1.61±5%-F5.19 | 110mm | 1/1.8 inch | 4K | / |
| T5215 | 6.7-220mm | 31x | 1.3-4.6 | 139mm | 1/1.8 inch | 4K | / |
| Part Number | Sensor Type | Focal Length | FNo. | Total Length | Mechanical BFL | Max Image Circle | Optical FOV (H) | Optical FOV (V) | Relative Illumination | TV Distortion |
| HC00002 | 256*192@12μm | 3.2 | F1.1 | 5.7mm | 2.6mm | 4mm | 55.8° | 42° | 80% | -12% |
| C0157 | 256*192@12μm | 7 | F1.0 | 13mm | 4mm | 4.4mm | 25.7° | 19.2° | 90% | -5.80% |
| C0197 | 384*288@12μm | 9.7 | F1.0 | 27mm | 8.5mm | 6.16mm | 26.46° | 19.81° | 90% | -4.50% |
| HC0009 | 640*512@12μm | 9 | F1.0 | 22mm | 7.5mm | 10.44mm | 44.6° | 36.1° | 90% | -5% |
| HC0003 | 640*512@12μm | 25 | F1.0 | 51.8mm | 2.93mm | 10.4mm | 17.2° | 13.82° | 90% | 5% |
| C0252 | 400*300@25μm | 25 | F0.8 | 47.22mm | 3.96mm | 12.5mm | 22.64° | 17.03° | 95% | 1% |

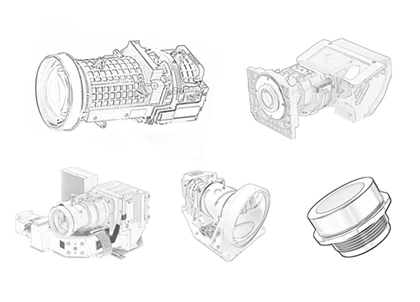

Union Optech provides customized precision optical components and assemblies designed to meet diverse application needs worldwide. From concept to mass production, our integrated capabilities cover optical design, prototyping, molding, coating and assembly. Backed by advanced rigorous quality control, we deliver reliable, high-performance precision optical lenses and assemblies that meet exact application needs.
Discuss your project needs with our engineers and explore how Union Optech can provide tailored optical solutions with proven precision and reliability.
