Infrared Thermal Imaging Lens

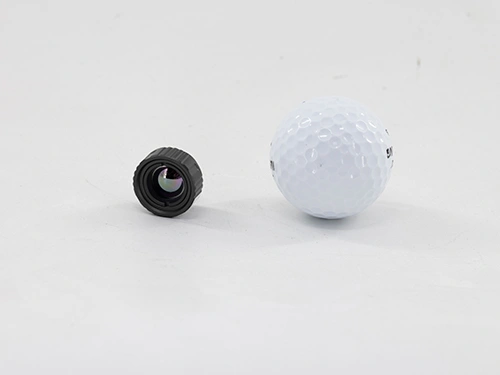

C0197 IR Thermal Imaging Camera Lens, 384×288@12μm Sensor, 9.7mm, F1.0 Aperture

IR Thermal Imaging Camera Lens, 384×288@12μm Sensor, 9.7mm, F1.0 Aperture
Request a Quote
  • Chalcogenide glass molding process for high performance and cost efficiency
  • Large aperture with low distortion ensures clear and stable imaging

This infrared thermal imaging lens is designed for security monitoring and industrial temperature measurement equipment, combining high optical performance with cost advantages. Manufactured through a chalcogenide glass molding process, it integrates a 384×288@12μm sensor, 9.7 mm focal length, and F1.0 large aperture to deliver excellent thermal sensitivity and low-light imaging capability.

The thermal camera lens provides a 26.46° horizontal and 19.81° vertical field of view, with 90% relative illumination for uniform edge brightness and TV distortion as low as –4.5%, ensuring sharp and stable thermal images. Suitable for a variety of industrial and security applications, it offers reliable performance and imaging accuracy in demanding environments.

Specification
  • Part Number: C0197
  • Sensor Type: 384*288@12μm
  • Focal Length: 9.7
  • FNo.: F1.0
  • Total Length: 27mm
  • Mechanical BFL: 8.5mm
  • Max Image Circle: 6.16mm
  • Optical FOV (H): 26.46°
  • Optical FOV (V): 19.81°
  • Relative Illumination: 90%
  • TV Distortion: -4.50%
  • Application: security surveillance, industrial temperature measurement devices
Why Us
Design and R&D
Design and R&D Union Optech has established sales and technical centers in Japan, South Korea, and Canada, with a dedicated production base in Thailand. These global sites allow us to work closely with customers and provide localized technical support for optical design and development.
Manufacturing Capabilities
Manufacturing Capabilities With 61 production lines, we achieve a monthly capacity of 10 million fixed-focus lenses and 2 million zoom lenses. We also maintain in-house manufacturing capability to process 60 sets of optical lens molds and 100 sets of precision component molds each month, ensuring efficiency from design to mass production.
Quality Control
Quality Control Our facilities support both contact measurement (with accuracy up to 0.08 μm) and non-contact precision inspection. The company is certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 standards, and its laboratory is accredited by the China National Accreditation Service (CNAS) for national-level testing and calibration.
