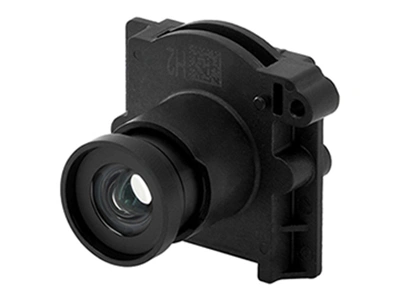

Security Camera Lens
UN0390 Fixed Focus Lens, 1/2.7' Sensor, 2.8mm, F1.6 Aperture
- 5M HD Resolution for fine details and recognition accuracy
- Large Aperture for clear and bright images
Wide F1.6 large aperture, 1/2.7' sensor and 5M resolution enable the camera to operate in low-light conditions, producing bright, detailed and low-noise images even at night without supplemental lighting. The day-night co-focus technology maintains the same focal point during the day and at night: it supports 24-hour focusing with no need to adjust focus manually between day (color) and night (infrared) modes. This means you get sharp and stable images 24/7. With a 110.3° horizontal wide-angle field of view, a single lens can cover large areas such as living rooms or courtyards, effectively minimizing blind spots. Compact design (total length 22.27mm) allows for easy integration into a variety of smart and surveillance devices, making it a versatile and cost-effective choice for both security and home monitoring applications.
- Part Number: UN0390
- Sensor Type: 1/2.7'
- Focal Length: 3.12mm±5%
- FNo.: 1.6±5%
- Total Length: 22.27±0.3mm (in air)
- Mechanical BFL: 5.31±0.2mm (in air)
- Max Image Circle: φ7mm
- Optical FOV (D): 132.8°±3°(φ6.609mm)
- Optical FOV (H): 110.3°±3°(φ5.76mm)
- Optical FOV (V): 59.6°±3° (φ3.24mm)
- Relative Illumination: 40%±5%
- TV Distortion: ≥-18.1%
- MAX Chief Ray Angle: 13.4°±3°



Our optical experts are ready to help you find the right precision optical lens or assembly solution for your imaging, sensing, or display application.
