    Video Conference Lens

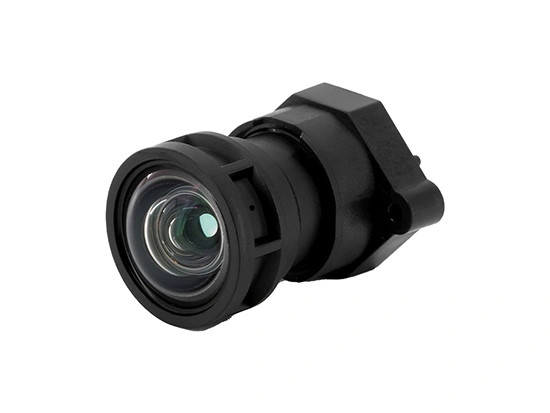

    UN5030 Fixed Focus Lens, 1/1.8' Sensor, 4.2mm, F2.3 Aperture

    UN5030 Fixed Focus Lens, 1/1.8' Sensor, 4.2mm, F2.3 Aperture
    Request a Quote
    • 1/1.8' Large sensor for fine details
    • 48MP ultra-high resolution for clear videos
    • F2.3 large aperture for sharp, low-noise visuals
    • Long depth-of-field for sharp near and far objects

    Designed for high-end video conferencing systems, UN5030 fixed-focus lens features a large 1/1.8' sensor paired with 48 MP ultra-high resolution, delivering detailed and refined image quality. The combination of an F2.3 large aperture and a long depth-of-field optical design allows both near and distant subjects to remain sharp without frequent refocusing, which is crucial for professional meetings where participants sit at varying distances from the camera. Its dual-lens stitching technology seamlessly merges footage from two lenses into a single, continuous frame, expanding the field of view for medium to large conference rooms. With low distortion and uniform illumination, the fixed focus lens ensures natural, true-to-life imaging performance, providing a high-performance, stable optical solution for enterprise-grade conferencing and hybrid collaboration environments.

    Specification
    • Part Number UN5030
    • Sensor Type 1/1.8'
    • Focal Length 4.2mm±5%
    • FNo. 2.3±5%
    • Total Length 27±0.3mm (IR+CG:0.51)
    • Mechanical BFL 2.9±0.2mm (IR+CG:0.51)
    • Max Image Circle ∅8.4mm
    • Optical FOV (D) 87°±3”(∅8.0mm)
    • Optical FOV (H) 73.1°±3°(∅6.4mm)
    • Optical FOV (V) 58°±3°(∅4.8mm)
    • Relative Illumination ≥45%
    • TV Distortion -2% < X < 0%
    • Max Chief Ray Angle 14°±3°
    Why Us
    Design and R&D
    Design and R&D Union Optech has established sales and technical centers in Japan, South Korea, and Canada, with a dedicated production base in Thailand. These global sites allow us to work closely with customers and provide localized technical support for optical design and development.
    Manufacturing Capabilities
    Manufacturing Capabilities With 61 production lines, we achieve a monthly capacity of 10 million fixed-focus lenses and 2 million zoom lenses. We also maintain in-house manufacturing capability to process 60 sets of optical lens molds and 100 sets of precision component molds each month, ensuring efficiency from design to mass production.
    Quality Control
    Quality Control Our facilities support both contact measurement (with accuracy up to 0.08 μm) and non-contact precision inspection. The company is certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 standards, and its laboratory is accredited by the China National Accreditation Service (CNAS) for national-level testing and calibration.
