Infrared Thermal Imaging Lens

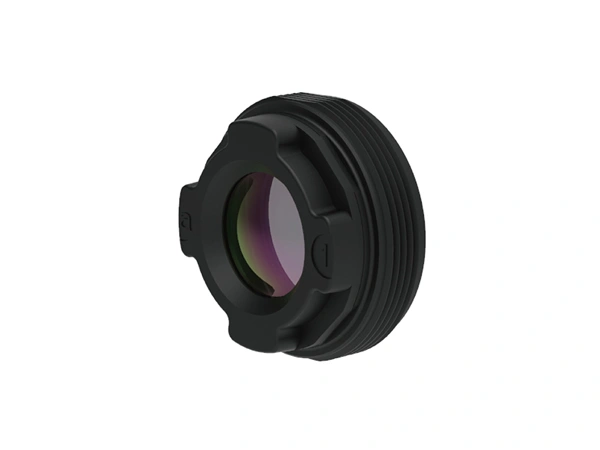

HC00002 IR Thermal Imaging Camera Lens, 256×192@12μm Sensor, 3.2mm, F1.1 Aperture

IR Thermal Imaging Camera Lens, 256×192@12μm Sensor, 3.2mm, F1.1 Aperture
Request a Quote
  • Chalcogenide glass molding process ensures stable performance and cost efficiency
  • Wide field of view and high-definition imaging precisely tailored for industrial use

Manufactured using a cost-effective chalcogenide glass molding process, the HC00002 infrared lens delivers stable optical performance with excellent consistency. It features a 2.6 mm mechanical back focus and a 4 mm maximum image circle, achieving a 55.8° horizontal field of view to support a wide range of thermal imaging applications. With 80% relative illumination, the image remains bright and uniform across the frame, while TV distortion is controlled within –12%, ensuring clear and stable output.

This compact and reliable design is suitable for drones, handheld thermal cameras, and other portable temperature measurement devices. Developed specifically for international professional clients, the lens provides an ideal balance of performance, adaptability, and cost efficiency for industrial and commercial thermal imaging solutions.

Specification
  • Part Number: HC00002
  • Sensor Type: 256*192@12μm
  • Focal Length: 3.2
  • FNo.: F1.1
  • Total Length: 5.7mm
  • Mechanical BFL: 2.6mm
  • Max Image Circle: 4mm
  • Optical FOV (H): 55.8°
  • Optical FOV (V): 42°
  • Relative Illumination: 80%
  • TV Distortion: -12%
  • Application: drones, portable temperature measuring devices
Why Us

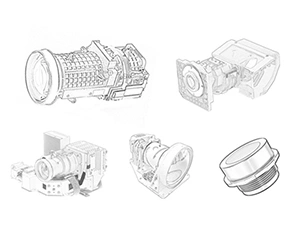

Design and R&D
Design and R&D Union Optech has established sales and technical centers in Japan, South Korea, and Canada, with a dedicated production base in Thailand. These global sites allow us to work closely with customers and provide localized technical support for optical design and development.

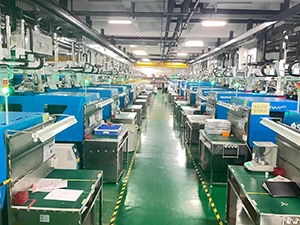

Manufacturing Capabilities
Manufacturing Capabilities With 61 production lines, we achieve a monthly capacity of 10 million fixed-focus lenses and 2 million zoom lenses. We also maintain in-house manufacturing capability to process 60 sets of optical lens molds and 100 sets of precision component molds each month, ensuring efficiency from design to mass production.

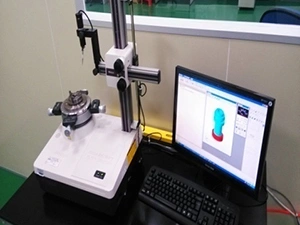

Quality Control
Quality Control Our facilities support both contact measurement (with accuracy up to 0.08 μm) and non-contact precision inspection. The company is certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 standards, and its laboratory is accredited by the China National Accreditation Service (CNAS) for national-level testing and calibration.
Custom Lens Manufacturing Custom Lens Manufacturing
Related Products

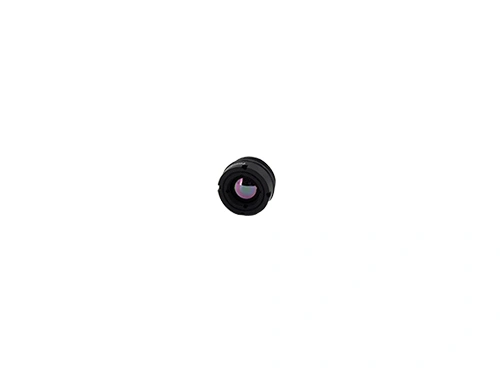

IR Thermal Imaging Camera Lens, 256×192@12μm Sensor, 7mm, F1.0 Aperture
