Security Camera Lens

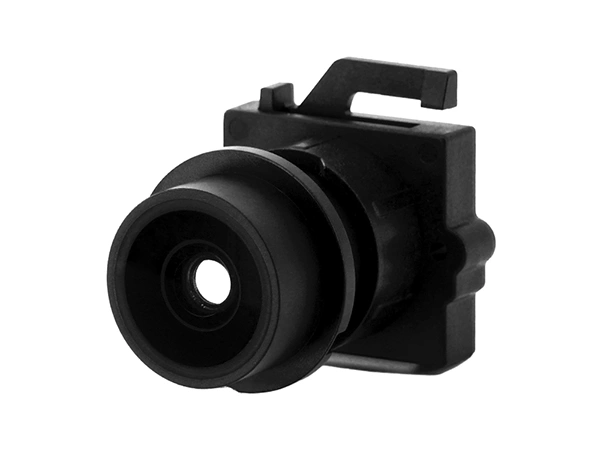

UN0500 Fixed Focus Lens, 1/1.8' Sensor, 4.32mm, F1.08 Aperture
- 4K UHD Resolution for fine details and recognition accuracy
- Ultra-Large Aperture for more clear and bright images
UN0500 fixed focus lens is designed with an ultra-large F1.1 aperture, allowing more light intake than conventional lenses. Even in low-light or nighttime environments, it delivers bright, clear, and finely detailed images.
Combined with a 1/1.8″ sensor and 4K resolution, it ensures high brightness and low noise performance day and night, truly achieving day-night co-focus without the need for additional lighting or manual refocusing.
Ideal for both security monitoring and smart home applications, it provides reliable high-definition visual performance around the clock.
Specification
- Part Number: UN0500
- Sensor Type: 1/1.8'
- Focal Length: 4.32±5%
- FNo.: 1.08±10%
- Total Length: 29.8±0.3mm
- Mechanical BFL: 4±0.2mm
- Max Image Circle: Ø9.2 mm
- Optical FOV (D): 134.7°±3°(∅8.955mm)
- 0ptical FOV (H): 111.8°±3°(∅7.792mm)
- Optical FOV (V): 59.65°±3°(∅4.408mm)
- Relative Illumination: ≥40%
- TV Distortion: ≥-18%
- Max Chief Ray Angle: 12.5°±3°
