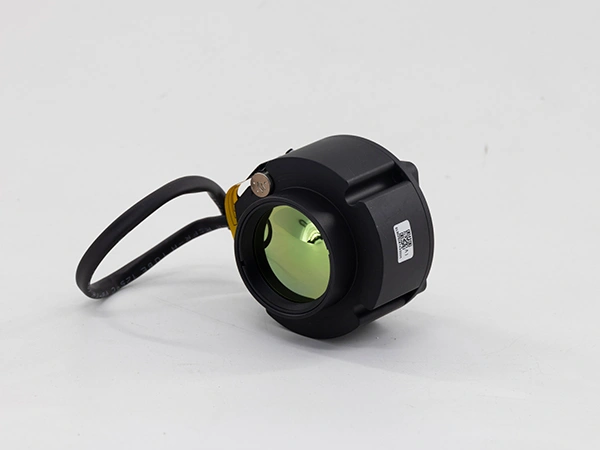

C0252 IR Thermal Imaging Camera Lens, 400×300@25μm Sensor, 25mm, F0.8 Aperture

IR Thermal Imaging Camera Lens, 400×300@25μm Sensor, 25mm, F0.8 Aperture
Request a Quote
  • Industrial-grade infrared lens with high temperature-measurement accuracy and stable imaging
  • F0.8 ultra-large aperture delivers superior light sensitivity and image clarity

In industries where precision and reliability define performance, this infrared thermal imaging lens provides dependable results even under challenging conditions. Its F0.8 ultra-large aperture allows exceptional light intake, enabling accurate detection of faint thermal signals and precise temperature measurement.

Equipped with a 400×300@25μm sensor, the lens achieves a 22.64° × 17.03° field of view, ideal for mid-range monitoring. With 95% relative illumination and only 1% distortion, it ensures image consistency and accuracy. The 3.96 mm mechanical back focus and 12.5 mm image circle make integration seamless across multiple systems. Built for industrial temperature monitoring and gas detection, it delivers clarity, sensitivity, and reliability in every frame.

Specification
  • Part Number: C0252
  • Sensor Type: 400*300@25μm
  • Focal Length: 25
  • FNo.: F0.8
  • Total Length: 47.22mm
  • Mechanical BFL: 3.96mm
  • Max Image Circle: 12.5mm
  • Optical FOV (H): 22.64°
  • Optical FOV (V): 17.03°
  • Relative Illumination: 95%
  • TV Distortion: 1%
  • Application: security surveillance, industrial temperature measurement devices
Why Us
Design and R&D
Design and R&D Union Optech has established sales and technical centers in Japan, South Korea, and Canada, with a dedicated production base in Thailand. These global sites allow us to work closely with customers and provide localized technical support for optical design and development.
Manufacturing Capabilities
Manufacturing Capabilities With 61 production lines, we achieve a monthly capacity of 10 million fixed-focus lenses and 2 million zoom lenses. We also maintain in-house manufacturing capability to process 60 sets of optical lens molds and 100 sets of precision component molds each month, ensuring efficiency from design to mass production.
Quality Control
Quality Control Our facilities support both contact measurement (with accuracy up to 0.08 μm) and non-contact precision inspection. The company is certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 standards, and its laboratory is accredited by the China National Accreditation Service (CNAS) for national-level testing and calibration.
