Projector Lens

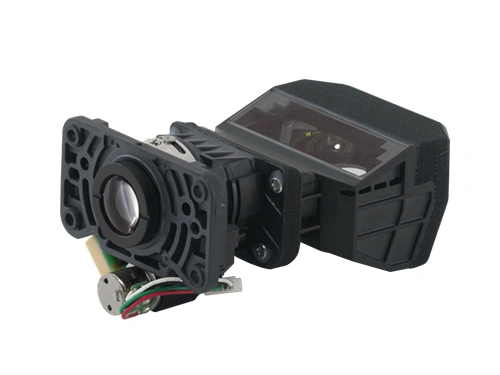

P0102 Ultra-Short Throw Lens, Phosphor Laser, 0.23' DMD, 0.23:1 Throw Ratio, F2.6 Aperture
- 0.23" DMD, the smallest DMD chip for ultra-short throw projection
- 0.23:1 throw ratio for 100-inch images directly from the wall
This ultra-short throw projection lens combines phosphor laser technology with a 0.23" DMD chip, the smallest of its kind, to achieve a highly compact optical design. With a 0.23:1 throw ratio and an F2.6 aperture, it projects 1080P high-definition images that stay clear and bright even when placed right next to the wall, creating a 100-inch screen without needing extra space. Thanks to its compact design, it fits easily into commercial spaces and works perfectly for retail displays, digital signage, and built-in installations.
Specification
- Part Number: P0102
- Projection Technology: DLP
- Light Source : Laser (Phosphor)
- Panel: 0.23'
- Throw Ratio: 0.23
- Resolution: 1080P
- FNo.: 2.6
- TTL: 84.5 mm
- ANSI Lm: 300lm
Why Us
Design and R&D
Union Optech has established sales and technical centers in Japan, South Korea, and Canada, with a dedicated production base in Thailand. These global sites allow us to work closely with customers and provide localized technical support for optical design and development.
Manufacturing Capabilities
With 61 production lines, we achieve a monthly capacity of 10 million fixed-focus lenses and 2 million zoom lenses. We also maintain in-house manufacturing capability to process 60 sets of optical lens molds and 100 sets of precision component molds each month, ensuring efficiency from design to mass production.
Quality Control
Our facilities support both contact measurement (with accuracy up to 0.08 μm) and non-contact precision inspection. The company is certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 standards, and its laboratory is accredited by the China National Accreditation Service (CNAS) for national-level testing and calibration.
