Stock code Video Conference Lens

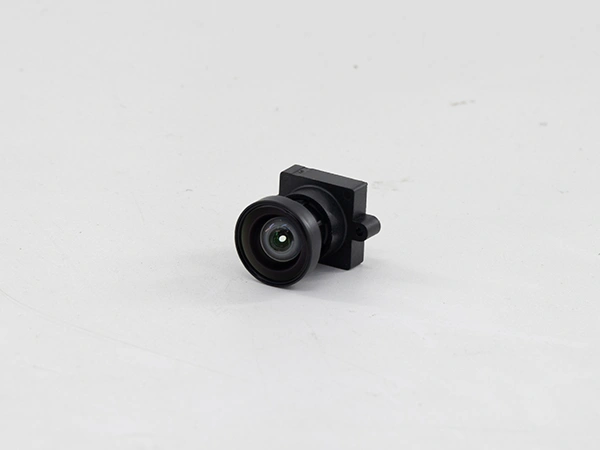

UN5017 Fixed Focus Lens, 1/2.8' Sensor, 2.03mm, F2.2 Aperture
- 4K UHD resolution for fine details
- Low -2.5% TV distortion for true-to-life images
- 117.2° Ultra-wide field of view for full coverage
Optimized for modern video conferencing, UN5017 fixed focus lens features a 1/2.8″ sensor supporting 4K Ultra HD resolution, delivering finely detailed and true-to-life images with excellent low-light performance. Its 117.2° ultra-wide field of view effortlessly covers the entire meeting space, ensuring every participant remains clearly visible. With TV distortion as low as –2.5%, the image retains natural proportions and edge-to-edge sharpness for a more professional conferencing experience. The compact optical design allows easy integration into enterprise-grade video conferencing and remote collaboration systems, ensuring high compatibility and stable performance.
- Part Number: UN5017
- Sensor Type: 1/2.8"
- Focal Length: 2.03mm±5%
- FNo.: 2.2±5%
- Total Length:
22.49±0.3(IR+CG=0.71mm) - Mechanical BFL:
3.0+±0.2(IR+CG=0.71mm) - Max Image Circle: ∅6.8mm
- Optical FOV (D):
117.2°±3°(ø 6.388mm) - Optical FOV (H):
110°±3°(∅5.568mm) - Optical FOV (V):
74.6±3°(∅3.132mm) - Relative Illumination: 40%±5%(ø6.388mm)
- TV Distortion: ≥-2.5%
- Chief Ray Angle: 12±3°
Our optical experts are ready to help you find the right precision optical lens or assembly solution for your imaging, sensing, or display application.
