Infrared Thermal Imaging Lens

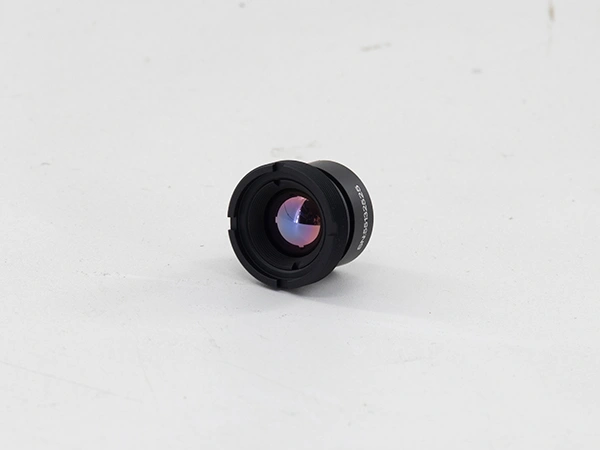

HC0009 IR Thermal Imaging Camera Lens, 640×512@12μm Sensor, 9mm, F1.0 Aperture

IR Thermal Imaging Camera Lens, 640×512@12μm Sensor, 9mm, F1.0 Aperture
Request a Quote
  • F1.0 large aperture and high-resolution sensor deliver clear, precise imaging
  • Chalcogenide glass molding ensures stable performance and cost efficiency

Developed for industrial-grade UAV applications, this infrared thermal imaging lens combines clarity, precision, and reliability in a compact design. Equipped with a 640×512@12μm high-resolution sensor and an F1.0 aperture, it enhances image sharpness, low-light performance, and temperature-measurement accuracy during aerial operations.

The thermal imaging lens provides a 44.6° × 36.1° field of view, ideal for drone-based monitoring and inspection. With –5% TV distortion and 90% relative illumination, it maintains realistic, evenly bright images. Its 7.5 mm mechanical back focus and 10.44 mm image circle ensure excellent system compatibility. Produced through a chalcogenide glass molding process, the lens is lightweight, stable, and cost-efficient, making it well suited for continuous, high-load industrial flight tasks.

Specification
  • Part Number: HC0009
  • Sensor Type: 640*512@12μm
  • Focal Length: 9
  • FNo.: F1.0
  • Total Length: 22mm
  • Mechanical BFL: 7.5mm
  • Max Image Circle: 10.44mm
  • Optical FOV (H): 44.6°
  • Optical FOV (V): 36.1°
  • Relative Illumination: 90%
  • TV Distortion: -5%
  • Application: industrial unmanned aerial vehicles (drones)
Why Us
Design and R&D
Design and R&D Union Optech has established sales and technical centers in Japan, South Korea, and Canada, with a dedicated production base in Thailand. These global sites allow us to work closely with customers and provide localized technical support for optical design and development.
Manufacturing Capabilities
Manufacturing Capabilities With 61 production lines, we achieve a monthly capacity of 10 million fixed-focus lenses and 2 million zoom lenses. We also maintain in-house manufacturing capability to process 60 sets of optical lens molds and 100 sets of precision component molds each month, ensuring efficiency from design to mass production.
Quality Control
Quality Control Our facilities support both contact measurement (with accuracy up to 0.08 μm) and non-contact precision inspection. The company is certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 standards, and its laboratory is accredited by the China National Accreditation Service (CNAS) for national-level testing and calibration.
